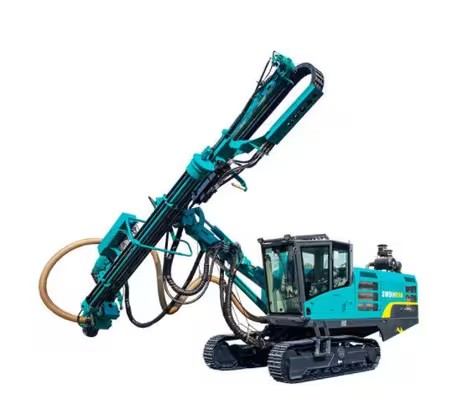

Full Hydraulic Rock Drilling Tools Open Pit Drill Rig

Intelligent F10-Rated Hydraulic Drill Rig — Precision, Power & Connectivity for Demanding Open-Pit Sites

Shanhe Xiangyun’s full hydraulic open-pit drill rig is engineered for high-productivity rock blasting and civil infrastructure drilling in hard-to-medium-hard formations (f ≥ 10). Built with industrial-grade reliability, it integrates an intelligent IoT control system, multi-axis folding arm, high-impact hydraulic rock drill with auto-backstroke, and real-time path planning — enabling fast, energy-efficient, and terrain-adaptive operations across quarries, roadworks, open-pit mines, and hydropower stations.


Delivered in certified wooden packaging, with 20-working-day lead time and T/T payment terms.

Key Advantages

  • F10-rated hydraulic rock drill with 3,200–4,500 J impact energy and integrated backstroke function to prevent stuck rods and extend bit life
  • Multi-angle drilling capability: vertical, inclined (±45°), and horizontal holes — all from a single positioning setup
  • Folding arm + double-sided cold-drawn guide rail propulsion beam for high rigidity, ±0.3 mm guiding accuracy, and 30° slope climbing ability
  • Smart common-base control system with real-time depth/angle feedback, graphic-guided hole sequencing, and millimeter-level path repeatability
  • Shanhe Xiangyun IoT Platform integration: remote monitoring, APP-based operation data sync, and construction status dashboard
  • Core components sourced from Tier-1 global suppliers (hydraulic pumps, valves, controllers) — fully validated for 10,000+ hour field service life

Applications

  • Quarry blasting hole drilling (pre-splitting, production, cushion blasting)
  • Civil engineering foundation and anchor hole drilling for bridges, tunnels & retaining structures
  • Road and railway cut/fill slope stabilization drilling
  • Open-pit mine exploration and production blast pattern drilling
  • Hydropower station diversion tunnel, grouting, and drainage hole applications
  • Urban infrastructure projects requiring low-vibration, high-precision rock penetration

Technical Specifications

Drilling RatingF10 (hard rock, UCS up to 180 MPa)
Drill Depth Range0.5 – 25 m (adjustable per configuration)
Hole DiameterΦ76 – Φ250 mm
Propulsion Force25 – 45 kN (hydraulically variable)
Drilling Speed (Typical)0.8 – 2.5 m/min (depending on rock hardness & bit type)
Power SupplyDiesel-hydraulic power unit (160–220 kW) or optional electric-hybrid
Weight (Operating)18,500 – 22,000 kg (config-dependent)
CertificationsCE, ISO 9001:2015, ISO 14001:2015, China MA Safety Mark

FAQ

Is this drill rig compatible with standard DTH hammers and rotary bits?
Yes — designed for universal interface compatibility with industry-standard DTH hammers (e.g., COP, RPD series) and tricone/insert bits (API RP 7G-2 compliant). Custom adapters available upon request.
What is the minimum order quantity and typical delivery timeline?
MOQ is 1 unit; standard lead time is 20 working days after confirmed order and T/T advance payment. Expedited build (12–15 days) available for priority orders.
How does the IoT platform support after-sales service and maintenance?
Real-time telemetry (pressure, temperature, cycle count, fault logs) feeds into our cloud dashboard. Predictive maintenance alerts and remote diagnostics reduce unplanned downtime by up to 37%.
Can the rig operate on steep or uneven terrain without repositioning?
Yes — equipped with automatic leveling legs, 30° gradeability, and terrain-compensating boom kinematics. Full drilling envelope remains stable on slopes up to 15° without relocation.

Detailed Description


MOQ:1PCS
Price:Price negotiations
Standard Packaging:wooden box package
Delivery Period:20 workday
Payment Method:T/T
Supply Capacity:1+PCS+20 workday


Full hydraulic open-pit drill

Product Application of Full hydraulic open-pit drill

It is suitable for drilling hard and medium-hard (f10 and above) rocks, and can be used for rock blasting drilling in quarries, civil engineering, road engineering, open-pit mines, and hydropower station construction. The equipment is equipped with a high-efficiency hydraulic rock drill, which has fast drilling speed, low energy consumption, flexible maneuverability and strong climbing ability, and can perform drilling operations on complex terrain.

◆ High power hydraulic rock drill, large impact energy, with its own backstroke function, effectively reduce the risk of stuck drilling, save drilling tools.

◆ Folding arm structure, one positioning coverage area

◆ Adopt double-sided guide rail cold-drawn forming structural steel propulsion beam, high strength, good guiding accuracy

◆ Multi-angle hole drilling, vertical, inclined and horizontal holes can be hit

◆ The core components are selected international famous brands, and the system design is reasonable and matched

Intelligent common base control system, accurate control Angle and depth

Path planning, hole sequence planning, graphic guidance, fast positioning

◆ Shanhe Xiangyun Internet of Things platform, APP operation data synchronous transmission, construction status control at any time

Request Technical Datasheet & Project-Specific Quotation

Get your customized configuration sheet, site assessment checklist, and formal quotation within 48 business hours — backed by Shanhe Xiangyun’s 2-year core component warranty.
