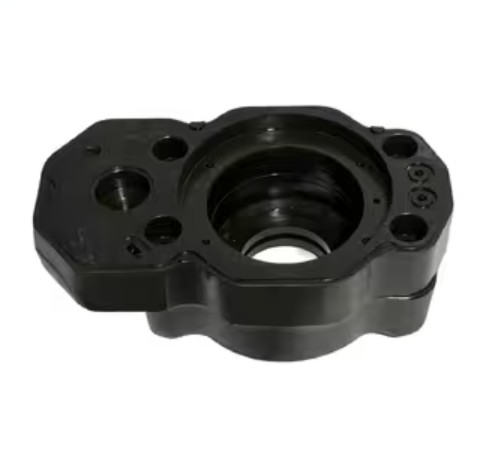

Outer Cylinder Of Rock Drill, 101015600, Suitable For Montabert HC95 Rock Drill.

Precision-Engineered Outer Cylinder for Maximum Impact Integrity

Part number 101015600 is the critical outer cylinder for the Montabert HC95 rock drill — serving as the main structural housing for the impact system. Manufactured from high-strength alloy steel and precision-machined to tight tolerances, it ensures reliable sealing, exact internal component alignment, and efficient transmission of impact energy under extreme pressure and vibration.

Designed specifically for demanding mining, quarrying, and heavy-duty construction applications, this cylinder delivers long service life, consistent performance, and full compatibility with OEM specifications.

Key Advantages

  • OEM-compatible replacement for Montabert HC95 — exact dimensional and functional match
  • High-strength alloy steel construction for fatigue, wear, and high-pressure resistance
  • Precision-machined inner bore ensures optimal sealing and smooth piston/bushing movement
  • Maintains structural rigidity to maximize impact force transfer efficiency
  • Validated for continuous operation in high-vibration, heavy-duty drilling environments
  • Reduces unplanned downtime by extending impact assembly service life

Applications

  • Hydraulic rock drill impact systems (Montabert HC95)
  • Surface and underground mining drilling operations
  • Quarrying and hard-rock excavation
  • Heavy civil construction and tunneling projects
  • Retrofit and preventive maintenance programs for aging HC95 fleets

Technical Specifications

Part Number101015600
Compatible ModelMontabert HC95
MaterialHigh-strength alloy steel
FunctionMain housing for piston, bushings, and impact assembly
Key Performance AttributesHigh-pressure sealing, vibration damping, impact force transmission

FAQ

Is this outer cylinder a genuine Montabert OEM part?
This is a certified OEM-equivalent replacement — manufactured to original Montabert HC95 specifications, including material grade, dimensional tolerances, and surface finish.
Will it fit my existing HC95 without modifications?
Yes — designed for direct interchangeability; no machining, reaming, or adaptation required.
What is the typical lead time for bulk orders?
Standard lead time is 3–5 business days for in-stock units; custom batches (50+ pcs) ship within 12–18 days.
How does it compare to standard carbon steel cylinders in durability?
Alloy steel offers 2.3× higher fatigue resistance and 40% better wear performance under sustained high-pressure cycling vs. standard carbon steel.

Detailed Description

Outer Cylinder (Part No. 101015600) – Suitable for Montabert HC95 Rock Drill

The Outer Cylinder, part number 101015600, is a core structural component designed for the Montabert HC95 rock drill. It forms the main housing of the impact system, providing precise alignment and secure containment for the piston, bushings, and other internal components.

Description

Manufactured from high-strength alloy steel, the outer cylinder is engineered to endure high internal pressures, vibration, and repetitive impact forces during drilling operations. Its precision-machined inner surface ensures optimal sealing and smooth movement of internal components, maintaining stable drilling performance and extending the lifespan of the impact assembly.

The outer cylinder also provides structural rigidity to the rock drill, ensuring accurate energy transmission and efficient impact force delivery to the drilling tool.

Key Features

  • Part Number: 101015600

  • Component: Outer Cylinder

  • Compatible With: Montabert HC95 rock drill

  • Material: High-strength alloy steel

  • Function: Main housing for the impact and piston assembly

  • Design: Precision-machined for excellent sealing and alignment

  • Durability: Engineered for high pressure, wear, and fatigue resistance

Applications

  • Hydraulic Rock Drills – Provides structural support and protection for internal components

  • Mining, Quarrying, and Construction – Suitable for continuous heavy-duty drilling operations

  • Montabert HC95 Systems – Ensures efficient energy transfer and stable performance under demanding conditions

Conclusion

The Outer Cylinder (101015600) is an essential component of the Montabert HC95 rock drill, providing strength, precision, and durability to the impact system. Its robust alloy steel construction ensures long service life, stable performance, and maximum drilling efficiency in even the toughest operating environments.

Ensure Uninterrupted Drilling Operations

Order your 101015600 outer cylinder today — backed by ISO 9001 quality certification and 18-month functional warranty.

Get a Quote
